EZM-4017
Can't find what you're looking for? Go to the Product Selector
Support Block
Support Block, Universal Single Bearing Support, .664-32
Lead Time:
2 Weeks*
*Lead times may increase with quantity. Displayed lead times (in business days or weeks) do not include transit time.
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
- Simplifies installation of ball screw assemblies
- Rated for radial and thrust loads
- Screw ends must be machined to install support blocks

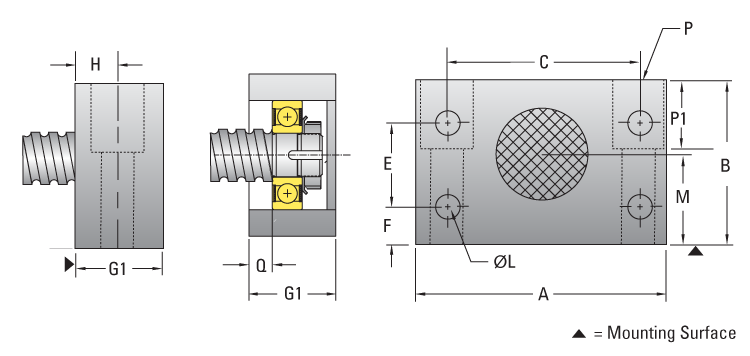

| Dimension | Value |
|---|---|
| A | 114.30 mm (4.500 in) |
| B | 68.33 mm (2.690 in) |
| C | 85.85 mm (3.380 in) |
| E | 35.05 mm (1.380 in) |
| F | 15.75 mm (0.620 in) |
| G1 | 42.93 mm (1.690 in) |
| H | 21.34 mm (0.840 in) |
| L | 0.41(4) |
| M | 38.10 mm (1.500 in) |
| P | 13.46 mm (0.530 in) |
| P Counterbore | 0.88 |
| P Bolt | 1/2 × 21/4(2) |
| P1 | 31.75 mm (1.250 in) |
| Q | 9.65 mm (0.380 in) |
| T | 23.37 mm (0.920 in) |
