R0505-2
Can't find what you're looking for? Go to the Product Selector
BALL NUT, Superseded
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
- Nut Only, Screw Sold Separately
- Refer to item: 8105-448-013

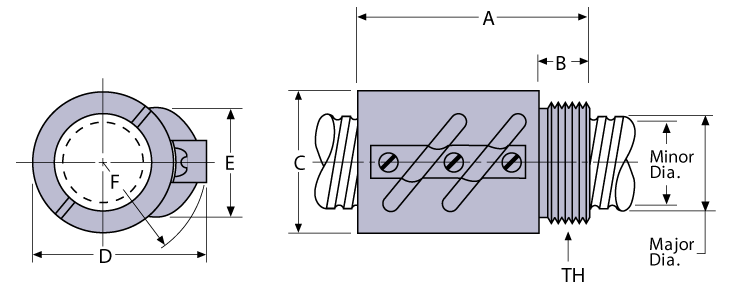

| 측정 항목 | 값 |
|---|---|
| [A] | 2.76 in |
| [B] | 0.39 in |
| [C] | 1.07 in |
| [D] | 1.339 in |
| [E] | 0.665 in |
| [F] | 0.85 in |
| [TH] | 15/16-16 UN-2A |
| Diameter, Nominal Screw | 0.5 in |
| travel per shaft rev | 0.2 in |
| 공연 | 값 |
|---|---|
| Load, Dynamic | 1200 lbf |
| Load, Static, Maximum | 9400 lbf |
| Maximum Acceleration | 5 m/s² |
| Torque to Raise 1 lb | 0.04 in-lbs |
