KGF-D-4020-RH-D-KK, Ball Nut Only, FH Style, 40 mm X 20 mm, RH, Flange, Wiper, 0.15 Nut Backlash, Maximum, Steel, 52.2 kN Load, Dynamic, With LoadLock, Superseded
Lead Time:
10 Weeks *
*Lead times may increase with higher quantities. Lead time displayed in business days.
- Nut Only, Screw Sold Separately
- Replaced by KGF-D-4020-RH-KK in North America or in Europe part number 0215200317
- Available in three preload classes (Type Z1, Z2, Z3) Z1 – light preload to 1-2% Z2 – no preload, clearance held to max indicated in table (standard unless specified) Z3 – no preload, clearance held to max .05mm
- Part number 7832812 is sold in North America. This same product is sold in Europe under part number 0215200317

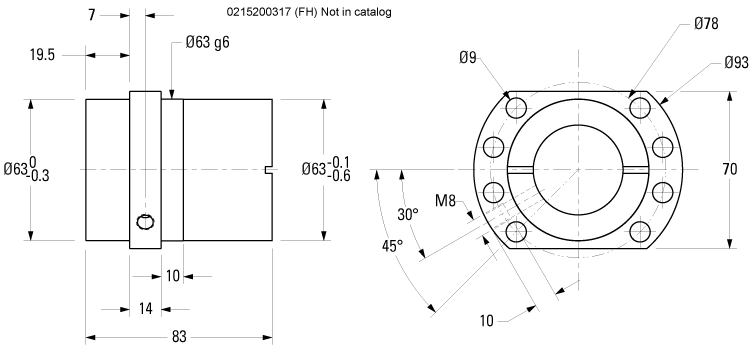

| Dimension | Value |
|---|---|
| [D1] | 63 mm |
| [D4] | 78 mm |
| [D5] | 9 mm |
| [D6] | 93 mm |
| [G] | M8x1 |
| [L] | 83 mm |
| [L1] | 25 mm |
| [L10] | 7 mm |
| [L2] | 83 mm |
| [L3] | 19.5 mm |
| [L6] | 19.5 mm |
| [L7] | 14 mm |
| [L8] | 70 mm |
| [L9] | 10 mm |
| Ball Bearing Diameter | 5.556 mm |
| Diameter, Nominal Screw | 40 mm |
| Nut Backlash, Maximum | 0.15 mm |
| travel per shaft rev | 20 mm |
| Performance | Value |
|---|---|
| Load, Dynamic | 52.2 kN |
| Load, Static, Maximum | 103.6 kN |
| Maximum Acceleration | 5 m/s² |
