Rotating Nut
Rotating Nut, NEMA 23, Single stack, 1.550 Amp Ø0.375 in x 0.100 in lead screw, 32.000 in length, Precision accuracy, D3 front end machining, C7 back end machining
Lead Time:
Contact Factory*
*Lead times may increase with quantity. Displayed lead times (in business days or weeks) do not include transit time.
Lead Screw Length:
Min: 1.89 in Max: 32.0 in
Configure Encoder
- A hybrid stepper motor and a precision lead screw together in one compact envelope.
- Higher torque density than the competition.
- Improved efficiency.
- Reduced noise.
| Dimension | Value | Tolerances |
|---|---|---|
| Ls | 812.80 mm (32.00 in) | |
| Lm | 45.21 mm (1.780 in) | |
| DF | 5.00 mm (0.20 in) | h7 |
| FF | 0.70 mm (0.03 in) | H13 |
| GF | 5.69 mm (0.22 in) | |
| HF | 4.80 mm (0.19 in) | h10 |
| L2F | 7.00 mm (0.28 in) | |
| L3R | 9.53 mm (0.38 in) | |
| THDR | M5X0.8 |

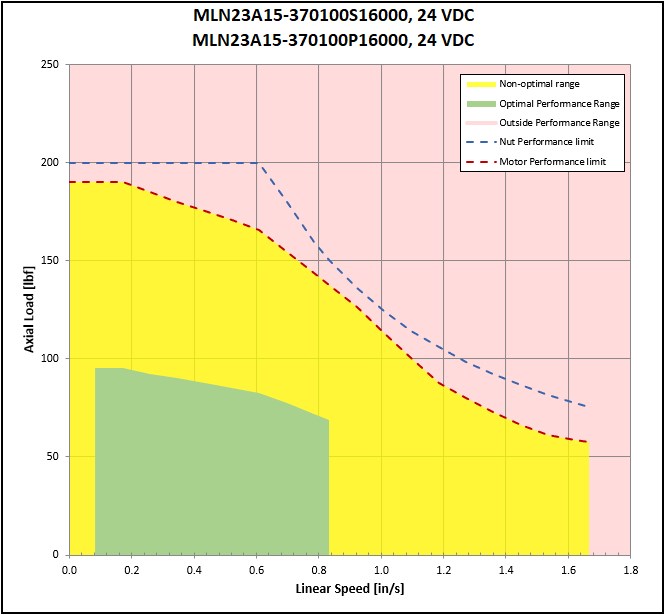

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 408.8 N / 91.9 lbf |
| Max Dynamic Load @ 24v | 419.9 N / 94.4 lbf |
| Max Dynamic Load @ 40v | 424.4 N / 95.4 lbf |
| Dynamic Load at Max Speed @ 12v | 123.7 N / 27.8 lbf @ 21.08 mm/s / 0.83 in/s |
| Dynamic Load at Max Speed @ 24v | 295.4 N / 66.4 lbf @ 21.08 mm/s / 0.83 in/s |
| Dynamic Load at Max Speed @ 40v | 368.8 N / 82.9 lbf @ 21.08 mm/s / 0.83 in/s |
| Recommended Max Axial Load | 890 N / 200 lbf |
| Max Case Temperature | 80 °C / 176 °F |
| Operating Temperature Max | 52 °C / 125 F |
| Operating Temperature Min | -9 °C / 15 F |
