ECT13-10004 - Eski Ürün
제품 ECT13-10004 은(는) 이제 구식입니다. 추가 질문이 있다면 당사에 문의하십시오.
This product family is now obsolete. Review our current product offering through our T-Series overview page.
Can't find what you're looking for? Go to the Product Selector

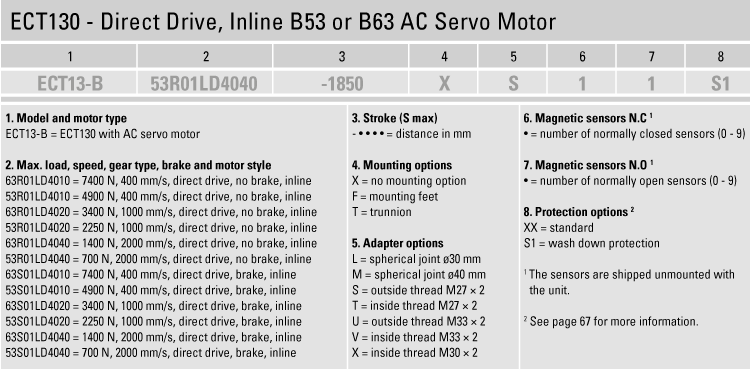

Actuator, Precision, ECT130, ECT13-B53R01LD4010-1524FX00+XX, brushless AC servo motor, Direct Drive, Inline, 1524 mm Stroke, 10 mm Travel Per Shaft Rev, No Brake, 4900 N
Lead Time:
2500 Days
- Brushless AC servo motor
- Extruded anodized aluminum cover tube
- Anodized aluminum housing
- Hard chromed steel extension tube
- Robust and reliable
- IP65 standard, wash down protected versions available
- Can be installed in all directions
- Mounting accessories according to hydraulic cylinder standards available
- Large range of options and accessories
| 측정 항목 | 값 |
|---|---|
| [B] | 12 mm |
| [L] | 1817 mm |
| [L1] | 1944 mm |
| [Smax] Stroke | 1524 mm |
| Diameter, Nominal Screw | 40 mm |
| Travel Per Shaft Rev | 10 mm |
| 공연 | 값 |
|---|---|
| Load, Dynamic | 4900 N |
| Maximum Linear Speed | 400 mm/s |
| Repeatability | 0.05 mm |
