TG07K729-A00D125
Can't find what you're looking for? Go to the Product Selector
Linear Unit, Movopart M75, Ball Screw Drive, Prism Guide, 0.05 mm Repeatability, Non-Preloaded, 718 mm Stroke, 1329 mm Overall Length, Single Shaft With Keyway, Superseded
Lead Time:
2 Weeks *
*Lead times may increase with higher quantities. Lead time displayed in business days.
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
- Can be installed in any orientation
- Self-adjusting stainless steel cover band
- Patented internal self-adjusting prism slide guides
- Wash down protected versions available

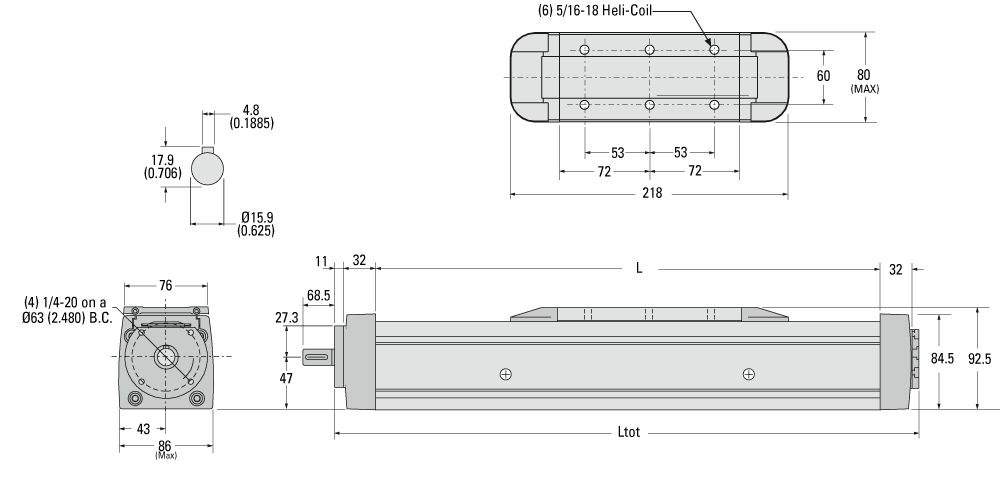

| Dimension | Value |
|---|---|
| [L] | 1250 mm |
| [Smax] Stroke | 718 mm |
| Ltot | 1329 mm |
