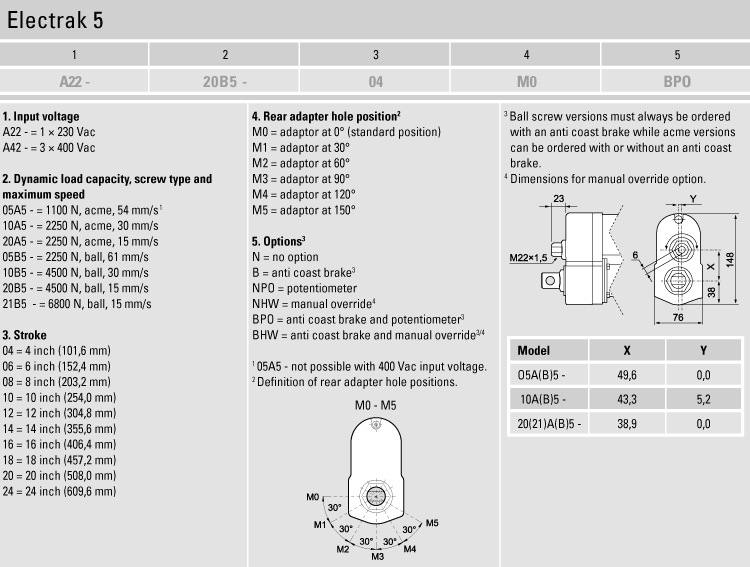

A22-21B5-10M0N
Can't find what you're looking for? Go to the Product Selector
Actuator, Electrak 5, 230 Vac, 6800 N, 254 mm, No Feedback, Cable length 600 mm, Flying Leads, 11 mm/s Travel Rate @ Full Load
Lead Time:
24 Weeks *
*Lead times may increase with higher quantities. Lead time displayed in business days.
- Robust, strong and reliable
- Stainless steel extension tube
- Highly efficient ball screw drive system
- Overload clutch for mid and end of stroke protection
- Heavy duty motor with thermal switch
- Anti-coast brake for repeatable positioning
- Maintenance free

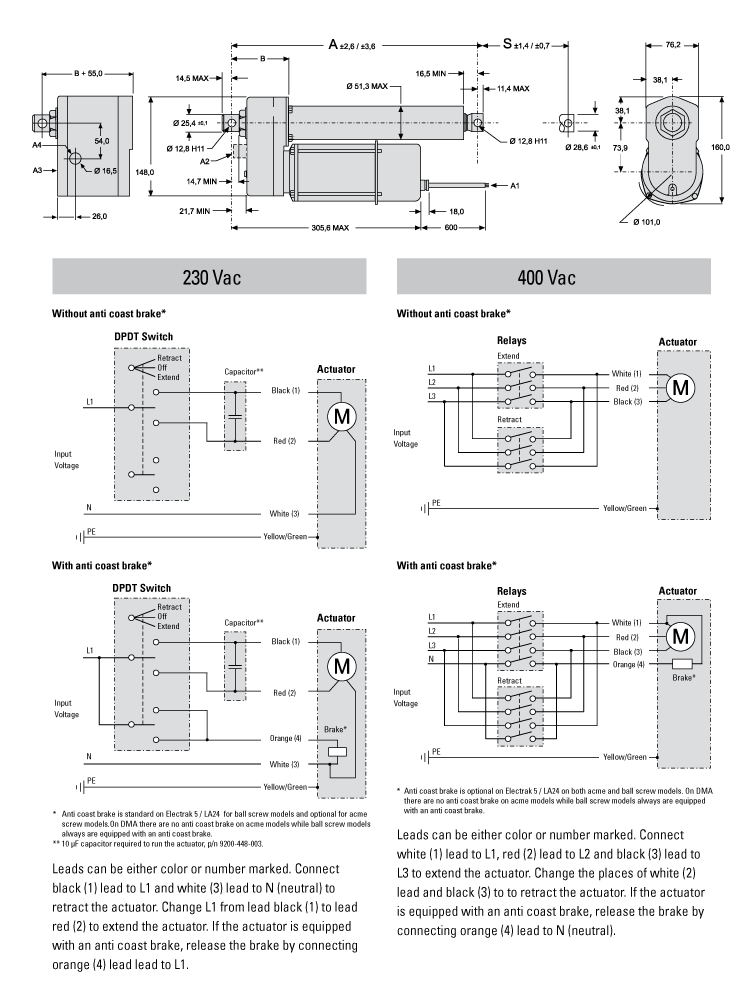

| Dimension | Value |
|---|---|
| [A] | 454.7 mm |
| [S] | 254 mm |
| Performance | Value |
|---|---|
| Duty Cyle | 25 % |
| Load, Dynamic | 6800 N |
| Load, Static, Max | 18000 N |
| Restraining Torque | 100 in-lbs |

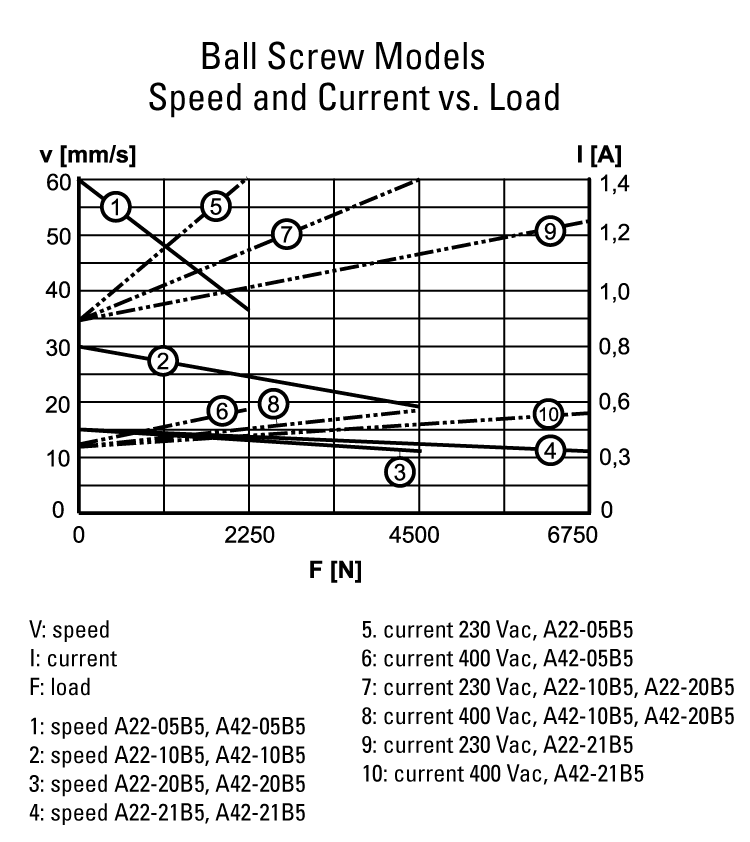

| Travel Rate @ Full Load | 11 mm/s |
| Travel Rate @ No Load | 15 mm/s |
