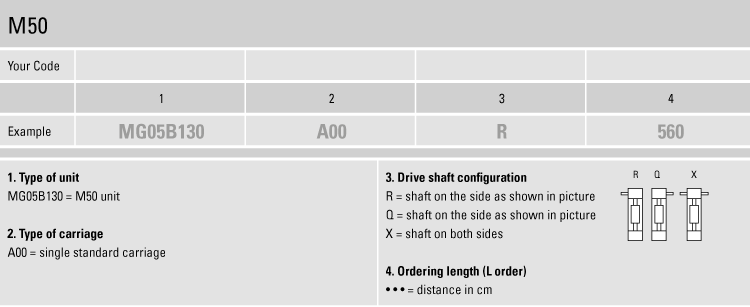

MG05B130-A00X367
Can't find what you're looking for? Go to the Product Selector
Linear Unit, Movopart M50, Belt Drive, Prism Guide, 0.20 mm Repeatability, 3400 mm Stroke, 3696 mm Overall Length, Single Standard Carriage, 130 mm Travel Per Shaft Rev, Shaft On Both Sides, 4.98 m/s Maximum Linear Speed, Superseded
Lead Time:
2 Weeks *
*Lead times may increase with higher quantities. Lead time displayed in business days.
- Can be installed in any orientation
- Resistant to shock loads and vibrations
- Patented self-adjusting prism slide guides
- Low cost

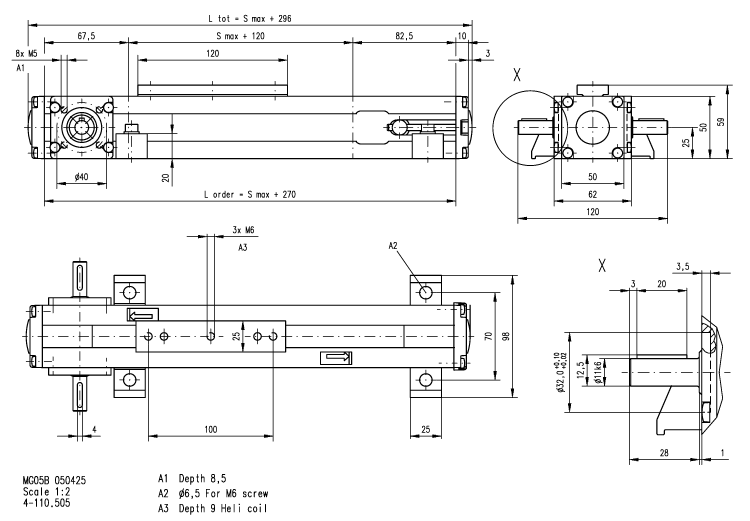

| Dimension | Value |
|---|---|
| [Smax] Stroke | 3400 mm |
| Ltot | 3696 mm |
| Travel Per Shaft Rev | 130 mm |
