2RB12-200948
Can't find what you're looking for? Go to the Product Selector

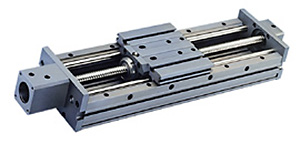

2RB12H0N0375-075N001A0B00, Linear Unit, 2RB, Ball Screw Drive, Ball Guide, 0.005 mm Repeatability, Preloaded, 162.72 mm Stroke, Single Standard Carriage, 10 mm Travel Per Shaft Rev, Inline, 0.47 m/s Maximum Linear Speed
Lead Time:
3 Weeks *
*Lead times may increase with higher quantities. Lead time displayed in business days.
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
- Can be installed in any orientation
- High load capabilities
- Low profile height
- Preloaded ballscrew and Super Smart bearing configuration provides stiffness / rigidity
- Corrosion resistant options available
- Bellows option available

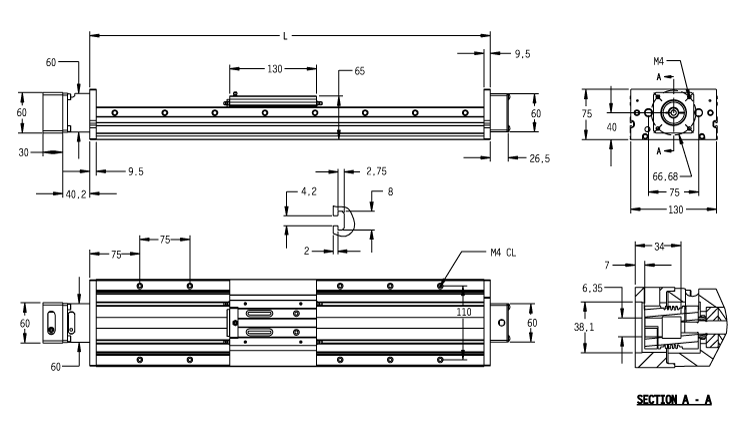

| Dimension | Value |
|---|---|
| [L] | 375 mm |
| [Smax] Stroke | 162.72 mm |
| Travel Per Shaft Rev | 10 mm |
