MLA14A08-0709S0250-C5-S02
Can't find what you're looking for? Go to the Product Selector
Motorized Lead screw Actuator, NEMA 14, 0.00355 in Travel/Step, 2.5 in Stroke, M4x0.7 Male Thread End Mounting, einzelner Stapel, 0.88 A, Actuator
Lead Time:
3 Weeks *
*Lead times may increase with higher quantities. Lead time displayed in business days.
- Motor comes standard with flying leads
- Cover tube length (L) = stroke (S) + 1.16 in. (29.5 mm).
- Actuator configurations are able to withstand some radial and moment loading due to the bushing design included inside the assembly.
- Geringere Geräuschentwicklung.
| Merkmale | Werte |
|---|---|
| [L] | 3.66 in |
| [M] | 1.34 in |
| [S] | 2.5 in |
| [T] | M4x0.7 Male Thread |
| Hubweg/Schritt | 0.00355 in |
| Screw, Lead | 0.709 in |

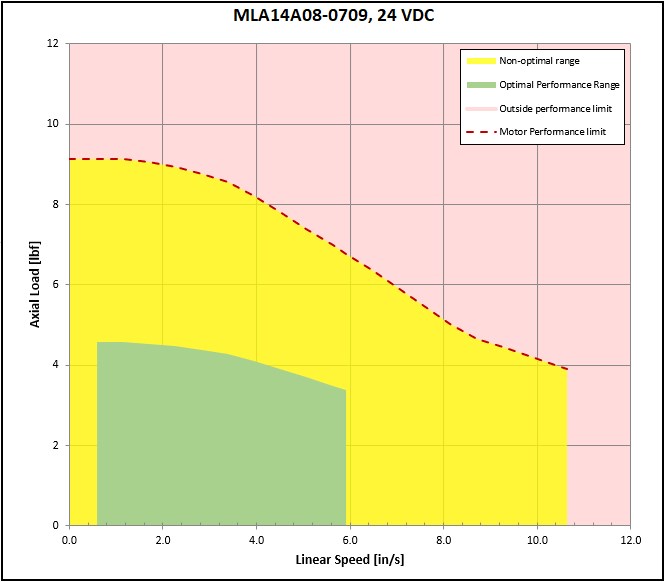

| Performance | Werte |
|---|---|
| Empfohlene max. Schubkraft | 3.3 lbf |
| Empfohlene max. Schubkraft | 4.5 lbf |
| Hubweg/Schritt | 0.00355 in |
| Max Speed (Recommended) | 5.9 in/s |
| Schrittwinkel | 1.8 ° |
| Screw, Lead Accuracy | 0.01 in/ft |
