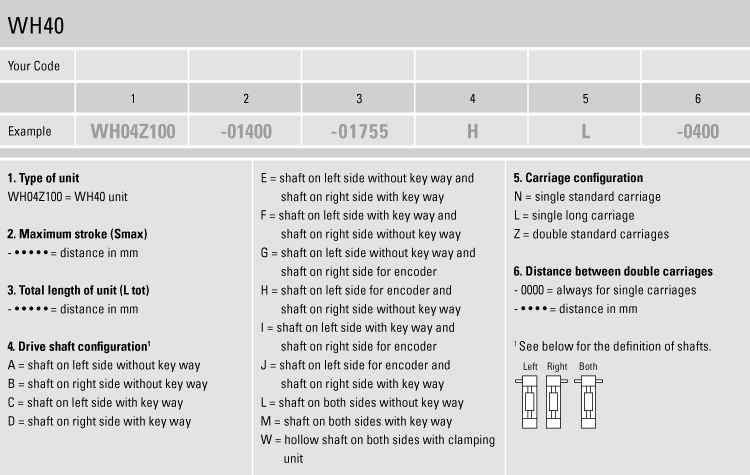

WH04Z100-00620-00975-LL0000-75
Can't find what you're looking for? Go to the Product Selector

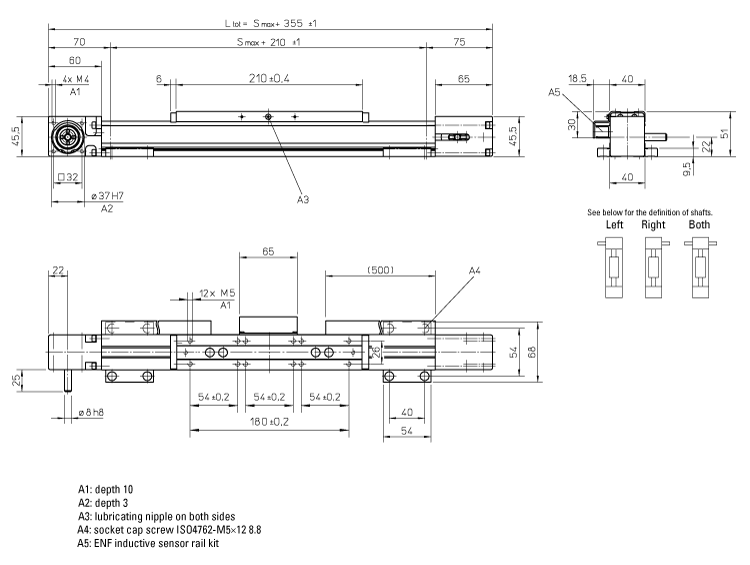

Linear Unit, WH40, Belt Drive, Ball Guide, 0.05 mm Repeatability, 620 mm Stroke, 975 mm Overall Length, Single Long Carriage, 100 mm Travel Per Shaft Rev, Shaft On Both Sides Without Keyway, 3 m/s Maximum Linear Speed
Lead Time:
4 Weeks
- Can be installed in any orientation
- Speed up to 3 m/s
- Belt Driven
| Wymiar | Wartość |
|---|---|
| [Smax] Stroke | 620 mm |
| Ltot | 975 mm |
| Travel Per Shaft Rev | 100 mm |
