SPPBOAM20-CR-LL
Can't find what you're looking for? Go to the Product Selector

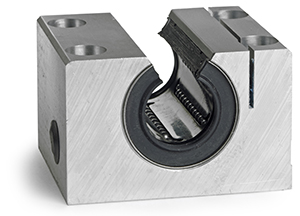

Linear Bearing, Ball Bushing, Pillow Block, Super, 20 mm, Aperto, Autoallineante, Regolabile, Lubrificato con Linear Lube (LL), Resistente alla corrosione (CR); Utilizzare con 20 mm Diameter Albero in applicazioni a supporto continuo
Lead Time:
Contact Factory *
*Lead times may increase with higher quantities. Lead time displayed in business days.
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
- Open Pillow blocks are for use with CONTINUOUS supported shafting
- For use with Metric class Shafting.
- Ball Bushing Bearings are included and factory installed in each Pillow Block
| Unità di misura | Valore |
|---|---|
| [A] | 60 mm |
| [A1] | 30 mm |
| [A1] Tolleranza | ± 0.020 mm |
| [Alpha] Angolo | 60 ° |
| [B] | 54 mm |
| [d] Albero, diametro nominale | 20 mm |
| [E1] | 45 mm |
| [E1] Tolleranza | ± 0.1 mm |
| [E2] | 32 mm |
| [E2] Tolleranza | ± 0.1 mm |
| [G] | 13 mm |
| [G1] | 20 mm |
| [G2] Accesso per la lubrificazione | M8 x 1 |
| [H] | 25 mm |
| [H] Tolleranza | ±0.020 mm |
| [H1] | 41 mm |
| [N] | 6.60 mm |
| Performance | Valore |
|---|---|
| Capacità di carico, dinamico | 1470 N |
