MF07K057-A00D100

MF07K057-A00D100
MF07K057-A00D100

Linear Unit, Movopart M75, Vite a sfere Drive, Sfera Guide, 0.05 mm Repeatability, Non precaricato, 530 mm Stroke, 1078 mm Overall Length, Slitta standard singola, 5 mm Travel Per Shaft Rev, Single Shaft With Keyway, 0.25 m/s Maximum Linear Speed, Superseded


  • Can be installed in any orientation
  • Self-adjusting stainless steel cover band
  • Internal ball guides
  • Wash down protected versions available

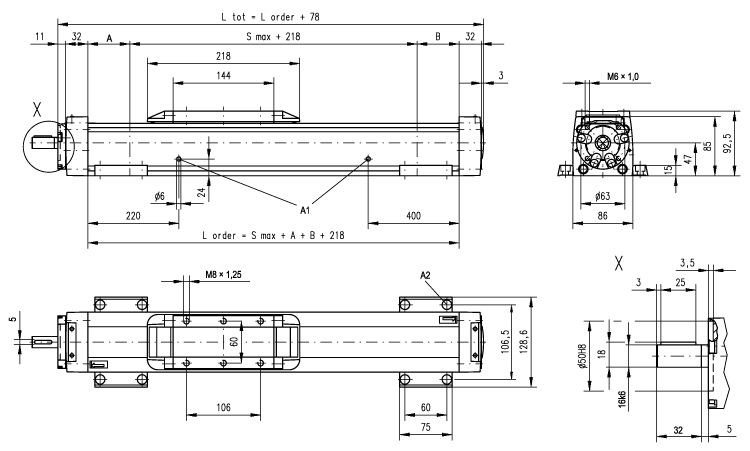

Dimensioni

dimensions
Unità di misuraValore
Ltot1078 mm
Smax (corsa)530 mm
Travel Per Shaft Rev5 mm

Specificazioni

SpecificazioniValore
Carriage TypeSlitta standard singola
DriveVite a sfere
GuideSfera
Opzione di protezioneStandard Protection
Profile size (width × height)86 x 75 mm
Screw Nut TypeNon precaricato
Shaft ConfigurationSingle Shaft With Keyway
Shaft OrientationInline
Shaft QuantitySingle Shaft
Weight18.5 kg

Prestazioni

PerformanceValore
Input speed, maximum3000 RPM
Maximum Acceleration8 m/s²
Maximum Linear Speed0.25 m/s
Repeatability0.05 mm
