MF06B105-A00Q121
Can't find what you're looking for? Go to the Product Selector
Linear Unit, Movopart M55, Cinghia Drive, Sfera Guide, 0.10 mm Repeatability, 890 mm Stroke, 1262 mm Overall Length, Slitta standard singola, 105 mm Travel Per Shaft Rev, Shaft On Right Side, 4.99 m/s Maximum Linear Speed, Superseded
Lead Time:
2 Weeks
- Can be installed in any orientation
- Self-adjusting stainless steel cover band
- Stroke up to 12 m
- Wash down protected versions available

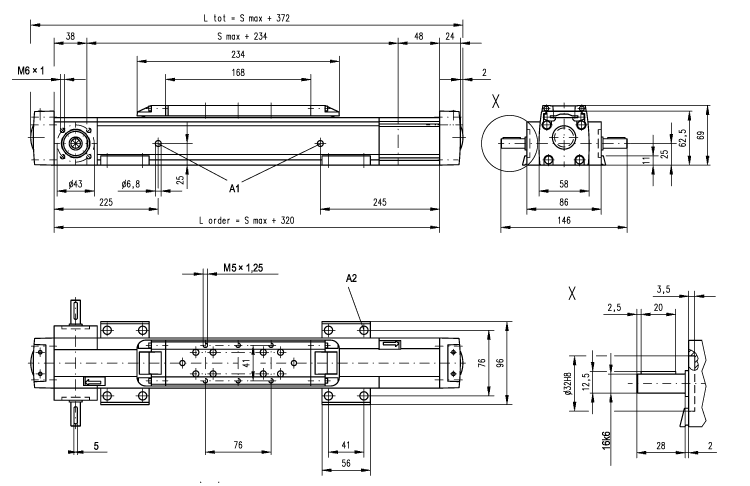

| Unità di misura | Valore |
|---|---|
| Ltot | 1262 mm |
| Smax (corsa) | 890 mm |
| Travel Per Shaft Rev | 105 mm |
