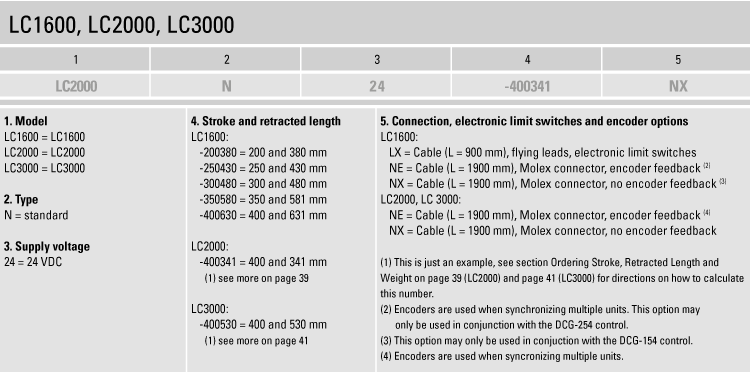

LC2000N24-250266NE
Can't find what you're looking for? Go to the Product Selector
Lifting Column, LC, Vis-mère télescopique Drive, 24 V CC, 250 mm Stroke, 2000 N, Encodeur
Lead Time:
9 Weeks *
*Lead times may increase with higher quantities. Lead time displayed in business days.
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
- Low weight and quiet operation
- Self supporting column in extruded anodized aluminum
- High load torque capability
- Maintenance free for life
- Very short retracted length
- Load holding brake
- Integrated end of stroke limit switches
- EMC recognized for medical applications

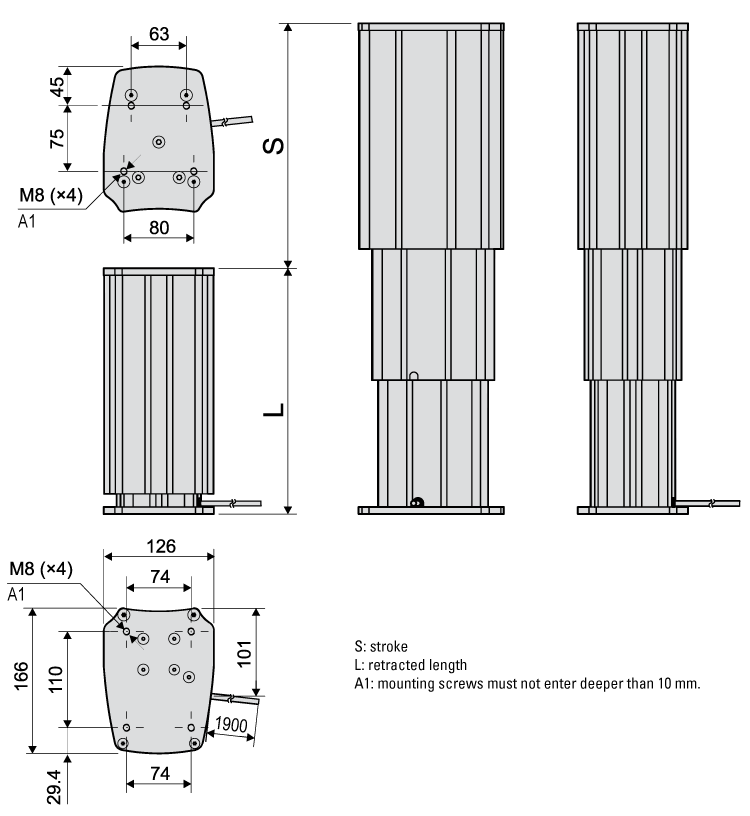

| Dimension | Valeur |
|---|---|
| [L] | 266 mm |
| [S] | 250 mm |

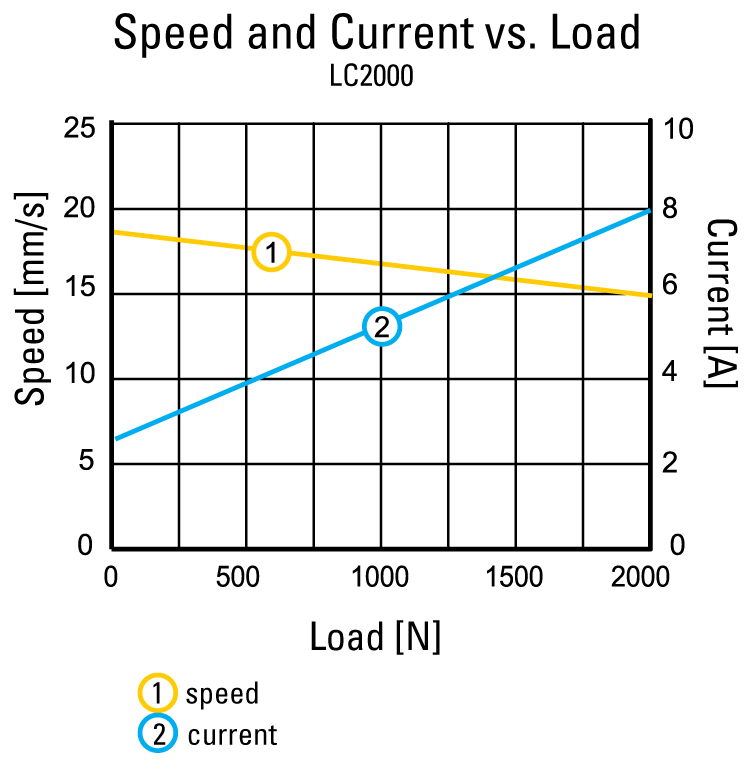

| Performance | Valeur |
|---|---|
| Charge, dynamique | 2000 N |
| Duty Cyle | 15 % |
| Vitesse de déplacement à pleine charge | 15 mm/s |
| Vitesse de déplacement sans charge | 19 mm/s |
