MLSH06Z135-01100-01580BN0000-0
Can't find what you're looking for? Go to the Product Selector

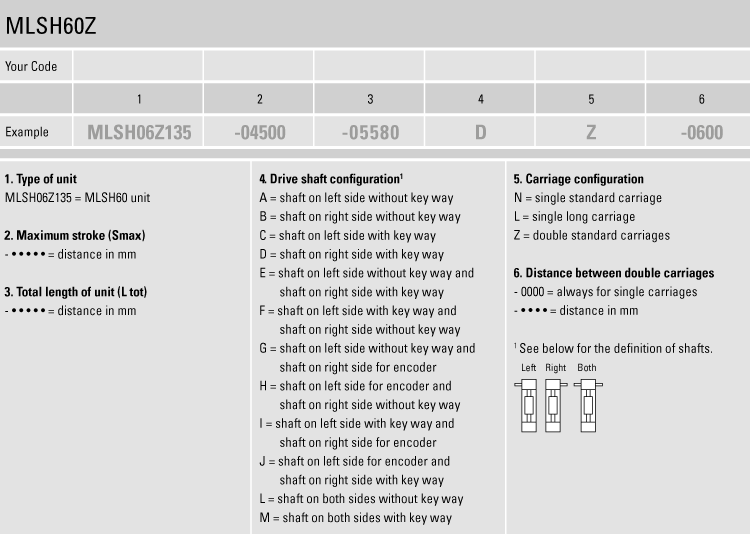

Linear Unit, MLSH, Belt Drive, Wheel Guide, 0.05 mm Repeatability, 1100 mm Stroke, 1580 mm Overall Length, Single Standard Carriage, 135 mm Travel Per Shaft Rev, Shaft On Right Side Without Keyway, 6.75 m/s Maximum Linear Speed
- Can be installed in any orientation
- Patented plastic cover band
- Speed up to 10 m/s
- Low profile height

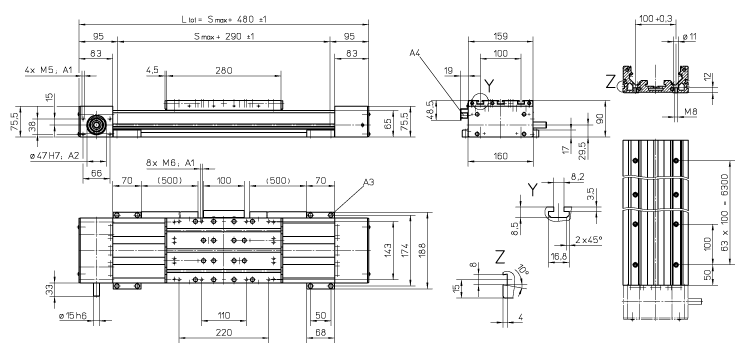

| Dimension | Value |
|---|---|
| [Smax] Stroke | 1100 mm |
| Ltot | 1580 mm |
| Travel Per Shaft Rev | 135 mm |
