7833701 - Product Superseded
Product 7833701 is now a superseded item. We suggest replacing with item 7833686. Contact us with any further questions.
Can't find what you're looking for? Go to the Product Selector
Support Block
Support Block, Motor Mount, M12 x 1 , Compatible diameters:0.631 in, 16 mm
Lead Time:
2 Weeks
Lead times may increase with higher quantities. Lead time displayed in business days.

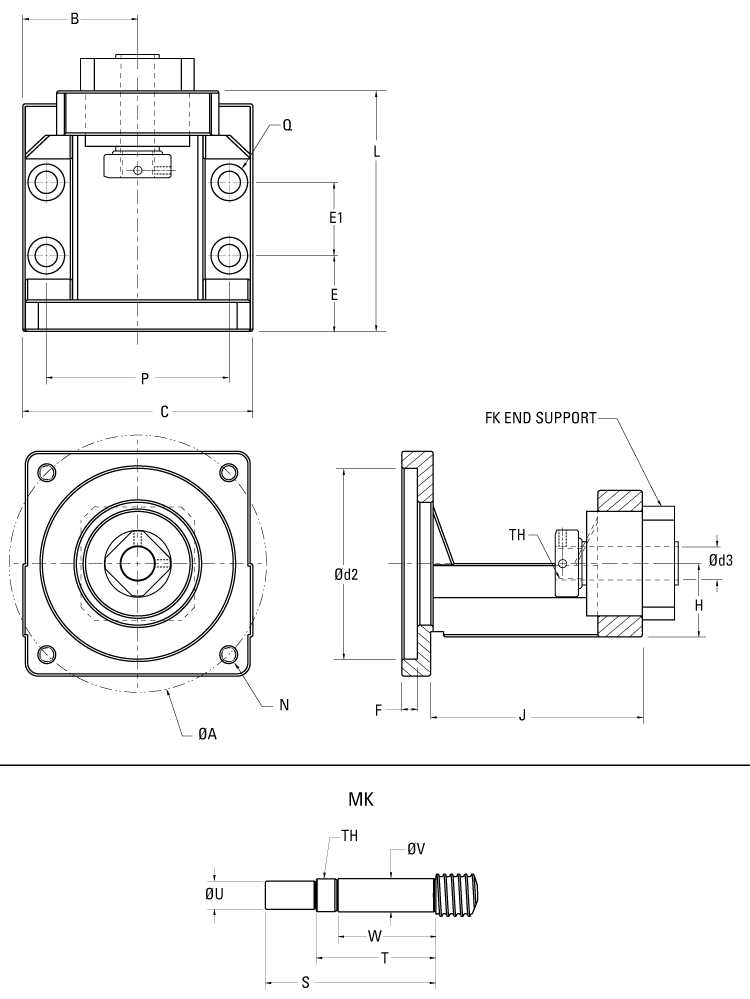

| Dimension | Value |
|---|---|
| A | 66.70 mm (2.626 in) |
| B | 32.50 mm (1.280 in) |
| C | 65.00 mm (2.559 in) |
| D2 | 38.10 mm (1.500 in) |
| D3 | 12.00 mm (0.472 in) |
| E | 24.00 mm (0.945 in) |
| E1 | 20.00 mm (0.787 in) |
| F | 4.00 mm (0.157 in) |
| H | 25.00 mm (0.984 in) |
| J | 65.00 mm (2.559 in) |
| L | 74.00 mm (2.913 in) |
| N | M4 |
| P | 50.00 mm (1.969 in) |
| Q | 4x 6.6 Thru, 11.2 C-Bore x 6.0 |
| S | 51.00 mm (2.008 in) |
| T | 36.00 mm (1.417 in) |
| TH | M12x1 |
| U (Max) | 10.00 mm (0.394 in) |
| V (Min) | 11.99 mm (0.472 in) |
| V (Max) | 12.00 mm (0.472 in) |
| W | 25.00 mm (0.984 in) |
