50-MSJ-UR 10.66:1/SSE-1/SSE-2/FA/72.00/S
Can't find what you're looking for? Go to the Product Selector
Machine Screw Jack
Inch Worm Gear Machine Screw Jack, Upright Rotating, Standard, 50 ton Capacity, 10.66:1 Gear Ratio, Travel Nut Position A
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
Max Travel Length
Min: 1.0 in Max: 240.0 in To the nearest .01 in
Jack Configuration
- Low noise
- Ideal for vertical loads
- Safe for static loads
- Lower cost

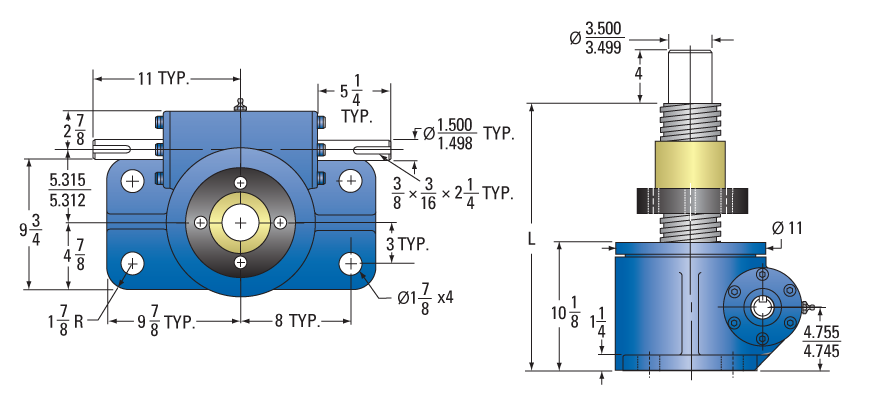

| Dimension | Value |
|---|---|
| L | 1,828.80 mm (72.000 in) |
| Dimension | Value |
|---|---|
| Unit Of Measure | All length values in: Inches |
| Performance | Value |
|---|---|
| Capacity | 444,822 N / 100,000.00 lbf |
| Torque to Raise 1 lb [0.45 kg] | 0.0063 N·m / 0.0560 in.-lb. |
| Max Input Torque | 627.63 N·m / 5,555.00 in.-lb. |
| Max Input kW/HP | 11.94 kW / 16.00 hp |
| Max Worm Speed Rated Load | 181 rpm |
| Max Capacity at 1750 rpm | 46,181 N / 10,382 lbf |
| Tare Drag Torque | 11.299 N·m / 100.000 in.-lb. |
| Lift Screw Efficiency | 28% |
| Jack Travel Rate at 1750 RPM | 2,769 mm/min / 109 in/min |
