10SS-MSJ-IR 8:1/SSE-1/SSE-2/FA/72.00/S
Can't find what you're looking for? Go to the Product Selector
Stainless Machine Screw Jack
Stainless SteelInch Worm Gear Machine Screw Jack, Inverted Rotating, 3.33 ton Capacity, 8:1 Gear Ratio, Travel Nut Position A
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
Max Travel Length
Min: 1.0 in Max: 144.0 in To the nearest .01 in
Jack Configuration
- Corrosion resistance for demanding environments
- Low noise
- Ideal for vertical loads
- Safe for static loads

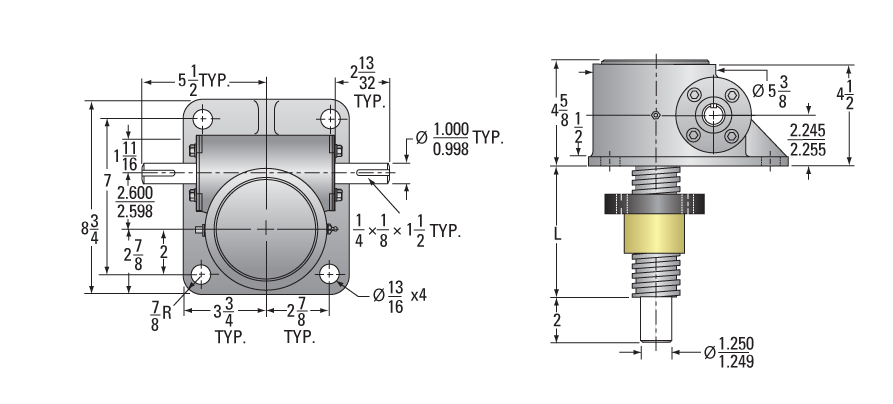

| Dimension | Value |
|---|---|
| L | 1,828.80 mm (72.000 in) |
| Dimension | Value |
|---|---|
| Unit Of Measure | All length values in: Inches |
| Performance | Value |
|---|---|
| Capacity | 29,625 N / 6,660.00 lbf |
| Torque to Raise 1 lb [0.45 kg] | 0.0043 N·m / 0.0380 in.-lb. |
| Max Input Torque | 28.36 N·m / 251.00 in.-lb. |
| Max Input kW/HP | 3.73 kW / 5.00 hp |
| Max Worm Speed Rated Load | 1,255 rpm |
| Max Capacity at 1750 rpm | 21,240 N / 4,775 lbf |
| Tare Drag Torque | 2.260 N·m / 20.000 in.-lb. |
| Jack Travel Rate at 1750 RPM | 2,769 mm/min / 109 in/min |
