10AB-MSJ-I 24:1/SSE-1/SSE-2/FT/72.00/S
Can't find what you're looking for? Go to the Product Selector
Machine Screw Jack
Inch Worm Gear Machine Screw Jack, Inverted, Anti-Backlash, 10 ton Capacity, 24:1 Gear Ratio, Standard Threaded End
Lead Time:
4 Weeks*
*Lead times may increase with quantity. Displayed lead times (in business days or weeks) do not include transit time.
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
Max Travel Length
Min: 1.0 in Max: 144.0 in To the nearest .01 in
Jack Configuration
- Low noise
- Ideal for vertical loads
- Safe for static loads
- Lower cost
- Anti-Backlash assembly reduces backlash

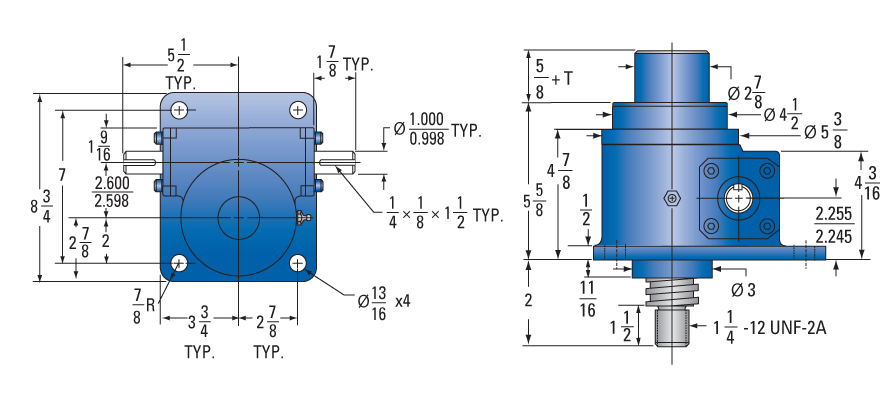

| Dimension | Value |
|---|---|
| T | 1,828.80 mm (72.000 in) |
| Performance | Value |
|---|---|
| Capacity | 88,964 N / 20,000.00 lbf |
| Torque to Raise 1 lb [0.45 kg] | 0.0021 N·m / 0.0190 in.-lb. |
| Max Input Torque | 43.39 N·m / 384.00 in.-lb. |
| Max Input kW/HP | 1.12 kW / 1.50 hp |
| Max Worm Speed Rated Load | 246 rpm |
| Max Capacity at 1750 rpm | 12,513 N / 2,813 lbf |
| Tare Drag Torque | 2.260 N·m / 20.000 in.-lb. |
| Lift Screw Efficiency | 40% |
| Jack Travel Rate at 1750 RPM | 914 mm/min / 36 in/min |
