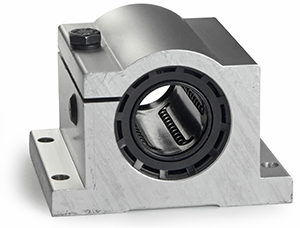

SPB8ADJ-LS
Can't find what you're looking for? Go to the Product Selector
Linear Bearing, Ball Bushing, Pillow Block, Super, 0.5 in, Closed, Self-aligning, Adjustable, Less Seals; Use with 0.5 in Diameter Class L Shaft in end supported applications
Lead Time:
10 Days
- Closed Pillow blocks are for use with END supported shafting.
- For use with Class L shafting
- Ball Bushing Bearings are included and factory installed in each Pillow Block
- Super Ball Bushing bearing pillow blocks are provided with integral, double acting seals unless otherwise specified
| Boyut | Değer |
|---|---|
| [d] Shaft, Nominal Diameter | 0.5 in |
| [A] | 2 in |
| [A2] | 1.38 in |
| [B] | 1.69 in |
| [E1] | 1.688 in |
| [E1] Tolerance | ± 0.010 in |
| [E2] | 1 in |
| [E2] Tolerance | ± 0.010 in |
| [F] | 1.13 in |
| [F1] | 0.25 in |
| [G] | 0.97 in |
| [G1] | 0.44 in |
| [H] | 0.687 in |
| [H1] | 1.25 in |
| [N] | 0.16 in |
| Performans | Değer |
|---|---|
| Load Capacity, Dynamic | 255 lbf |
