5-MSJ-IR 24:1/SSE-1/SSE-2/FA/72.00/S
Can't find what you're looking for? Go to the Product Selector
Machine Screw Jack
Inch Worm Gear Machine Screw Jack, Inverted Rotating, Standard, 5 ton Capacity, 24:1 Gear Ratio, Travel Nut Position A
Lead Time:
3 Weeks*
*Lead times may increase with quantity. Displayed lead times (in business days or weeks) do not include transit time.
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
Max Travel Length
Min: 1.0 in Max: 144.0 in To the nearest .01 in
Jack Configuration
- Low noise
- Ideal for vertical loads
- Safe for static loads
- Lower cost

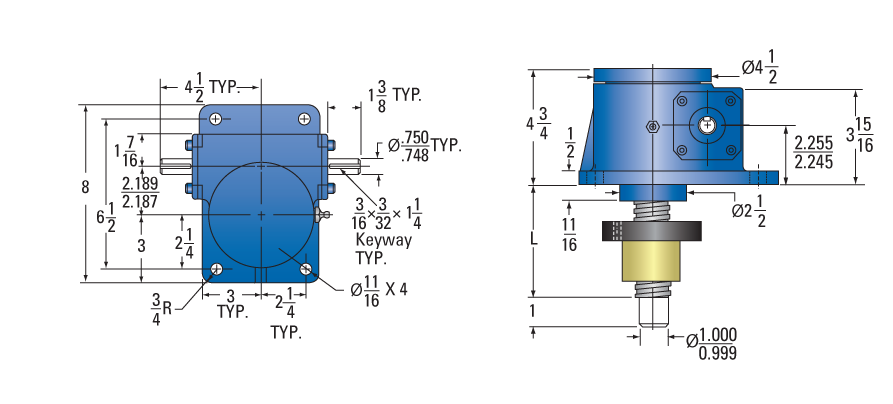

| Dimension | Value |
|---|---|
| L | 1,828.80 mm (72.000 in) |
| Dimension | Value |
|---|---|
| Unit Of Measure | All length values in: Inches |
| Performance | Value |
|---|---|
| Capacity | 44,482 N / 10,000.00 lbf |
| Torque to Raise 1 lb [0.45 kg] | 0.0016 N·m / 0.0140 in.-lb. |
| Max Input Torque | 16.27 N·m / 144.00 in.-lb. |
| Max Input kW/HP | 0.56 kW / 0.75 hp |
| Max Worm Speed Rated Load | 330 rpm |
| Max Capacity at 1750 rpm | 8,340 N / 1,875 lbf |
| Tare Drag Torque | 1.130 N·m / 10.000 in.-lb. |
| Lift Screw Efficiency | 40% |
| Jack Travel Rate at 1750 RPM | 686 mm/min / 27 in/min |
