AA22-05A65M45MON

Name: AA22-05A65M45MON
Price: 1699.950000 $

Download Full Catalog

Can't find what you're looking for? Go to the Product Selector

AA22-05A65M45MON

Actuador, LA24, 230 V CA, 1100 N, 450 mm, Sin realimentación, Cable length 600 mm, Flying Leads, 38 mm/s Velocidad de carrera con carga completa

Lead Time: 40 Days

each Costs associated with shipping, packaging, and import taxes/duty not included.

Robust, strong and reliable
Corrosion free aluminium cover tube
Stainless steel extension tube
Withstands very harsh environments
Trunnion mounting possible
Overload clutch for mid and end of stroke protection
T-slot grooves in the cover tube for magnetic sensors
Heavy duty motor with thermal switch
Anti-coast brake for repeatable positioning on ball screw models, optional with acme screw

Dimensiones

Unidad	Valor
[A]	666.7 mm
[S]	450 mm

Especificaciones	Valor
Anti-rotation	Sí
Brake	no (con bloqueo automático)
Cable length	600 mm
Cable y conector	Flying Leads
IP Rating	IP45
Manual Override	No
Material	Cobre; acero; zinc; aluminio; plástico
Motor Control	None
Nominal Stroke	450 mm
Protection, End-of-stroke	Clutch
Protection, Overload	Clutch
Realimentación	Sin realimentación
Reducción de engranaje	5:1
Screw Type	Acme
Temperature Max	65 °C
Temperature Min	-25 °C
Tensión	230 V CA
Weight	7.7 kg

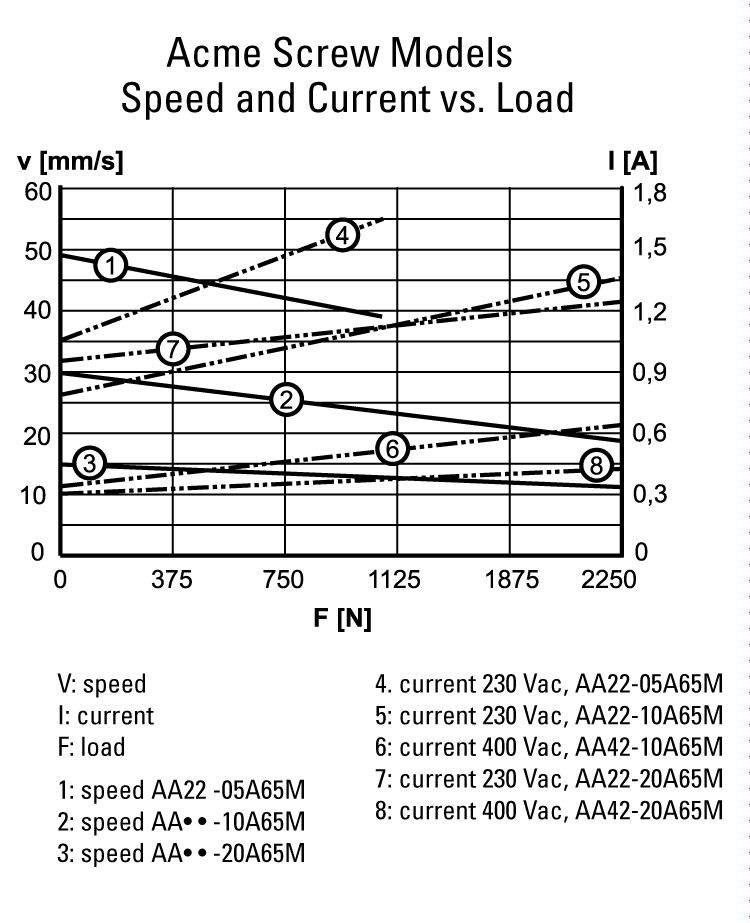

Rendimiento	Valor
Carga, dinámica	1100 N
Carga, estática máx.	11350 N
Duty Cyle	25 %
Restraining Torque	0 Nm
Velocidad de carrera con carga completa	38 mm/s
Velocidad de carrera sin carga	48 mm/s
