ADAPTER-KONSOLE KON-1 3205

Adapter support for side mounting a flanged ball or lead screw screw nut.
Hole pattern in accordance with DIN69051

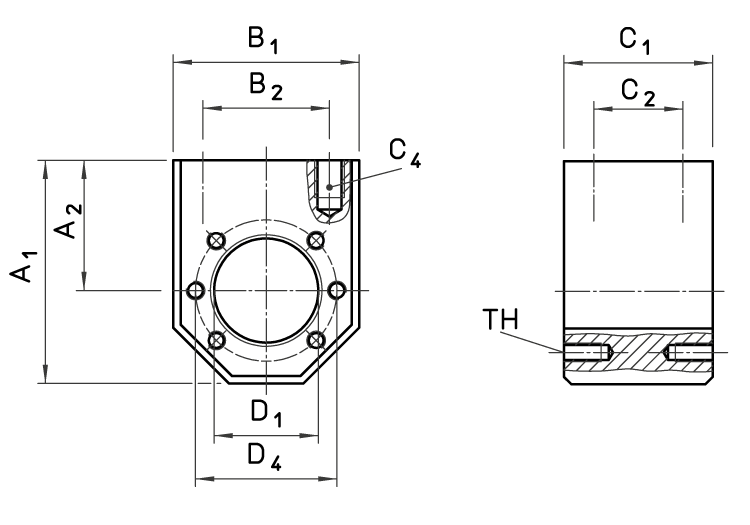

Dimensiones

dimensions

Unidad	Valor
[A1]	92 mm
[A2]	50 mm
[B1]	85 mm
[B2]	60 mm
[C1]	50 mm
[C2]	30 mm
[C4]	M12x15
[D1]	50 mm
[D4]	65 mm
[TH]	M8x12

Especificaciones

Especificaciones	Valor
Model Code	KON-1 3205/3232
Temperature Max	300 °F
