513H35A0 - Producto obsoleto
Producto 513H35A0 ahora es un artículo obsoleto.
Can't find what you're looking for? Go to the Product Selector

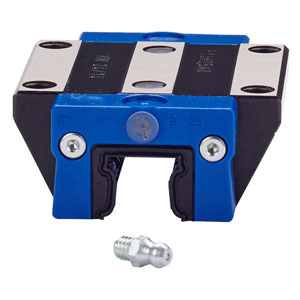

Riel perfilado, Serie 500 Jaula de bolas, Size: 35 mm, Alta precisión Grade, A Style, 0: espacio libre Preload, Obsoleto
- 500 Series Ball Profile Rail carriages are now available with ball spacer elements that significantly reduce the running noise of the carriage. The noise reduction is achieved by inserting plastic discs between each ball bearing.
- The addition of the plastic discs requires a reduced number of load carrying balls, which leads to a slight reduction of the static and dynamic load capacity of the ball spacer carriage.
- Significant noise reduction (-6 dB)
- Drop-in replacement for 511 ball carriage
| Unidad | Valor |
|---|---|
| [B] | 100 mm |
| [B2] | 33 mm |
| [F] | 8.5 mm |
| [F3] | 15 mm |
| [G] | 12 mm |
| [G1] | 12 mm |
| [J] | 41 mm |
| [L1] | 62 mm |
| [L2] | 52 mm |
| [L3] | 79.6 mm |
| [M1] | 7 mm |
| [N] | 82 mm |
| [O] | 8 mm |
| [P] | 14 mm |
| [S1] | M8 |
| [S2] | M10 |
| Altura del montaje [A] | 48 mm |
| Diámetro del rodamiento de bolas | 6.4 mm |
| Longitud de plataforma [L] | 111.6 mm |
| Tolerancia [B] | +0.0 -0.4 mm |
