PPA11-18B65-04NXXX
Can't find what you're looking for? Go to the Product Selector
Superseded - Actuator, 115 Vac, 500 lbf, 4 in, No Feedback, 0.60 in/s Travel Rate @ Full Load
Lead Time:
30 Days *
*Lead times may increase with higher quantities. Lead time displayed in business days.
- See related product for replacement part
| Dimension | Value |
|---|---|
| [A] | 13.7 in |
| [B] | 8.8 in |
| [C] | 9.5 in |
| [S] | 4 in |

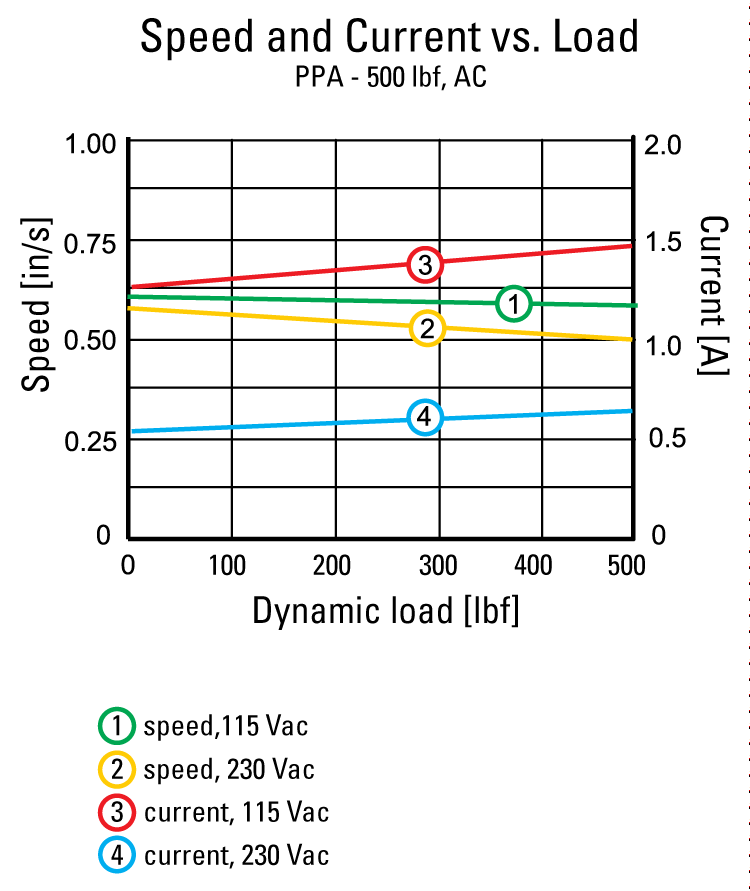

| Performance | Value |
|---|---|
| Load, Dynamic | 500 lbf |
| Load, Static, Max | 3000 lbf |
| Restraining Torque | 100 in-lbs |
| Travel Rate @ Full Load | 0.6 in/s |
| Travel Rate @ No Load | 0.63 in/s |
