T13-B5010MV053+S1-21

T13-B5010MV053+S1-21
T13-B5010MV053+S1-21

Actuator, Precision, T130, Motor not included, Direct Drive, Inline, 105 mm Stroke, 10 mm Travel Per Shaft Rev, No Brake, 60000 N, Wash Down Protection

Lead Time:  11 Weeks

  • Motor not included. For units with motors see the ECT series.
  • Extruded anodized aluminum cover tube
  • Anodized aluminum housing
  • Hard chromed steel extension tube
  • Ball screw drive
  • Slide guides

측정

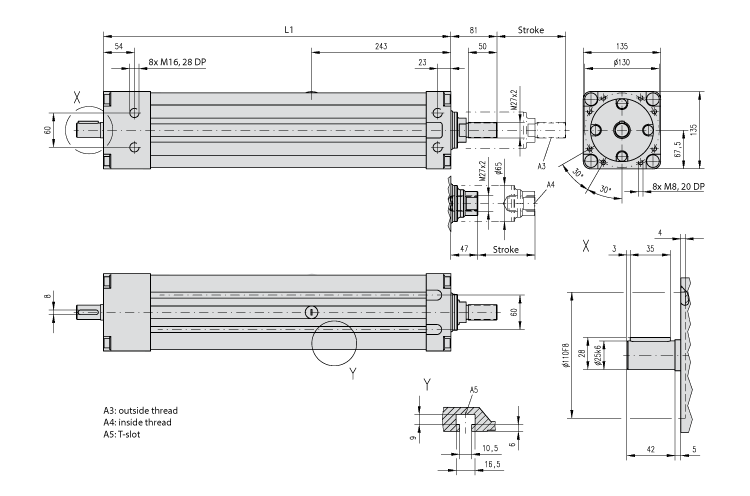

dimensions
측정 항목
[L1]530 mm
[Smax] Stroke105 mm
Diameter, Nominal Screw50 mm
Travel Per Shaft Rev10 mm

명세서

명세서
Adapter Options, Rod EndFemale thread, M33x2
BrakeNo Brake
Cylinder Mounting OptionsNo Mounting option included
Drive TypeDirect Drive, Inline
IP RatingIP65
Motor TypeMotor not included
Profile Size130 x 130 mm
Protection OptionWash Down Protection
Screw TypeBall
Weight29.2 kg

성능

공연
Input speed, maximum2000 RPM
Load, Dynamic60000 N
Maximum Linear Speed0.33 m/s
Repeatability0.05 mm
