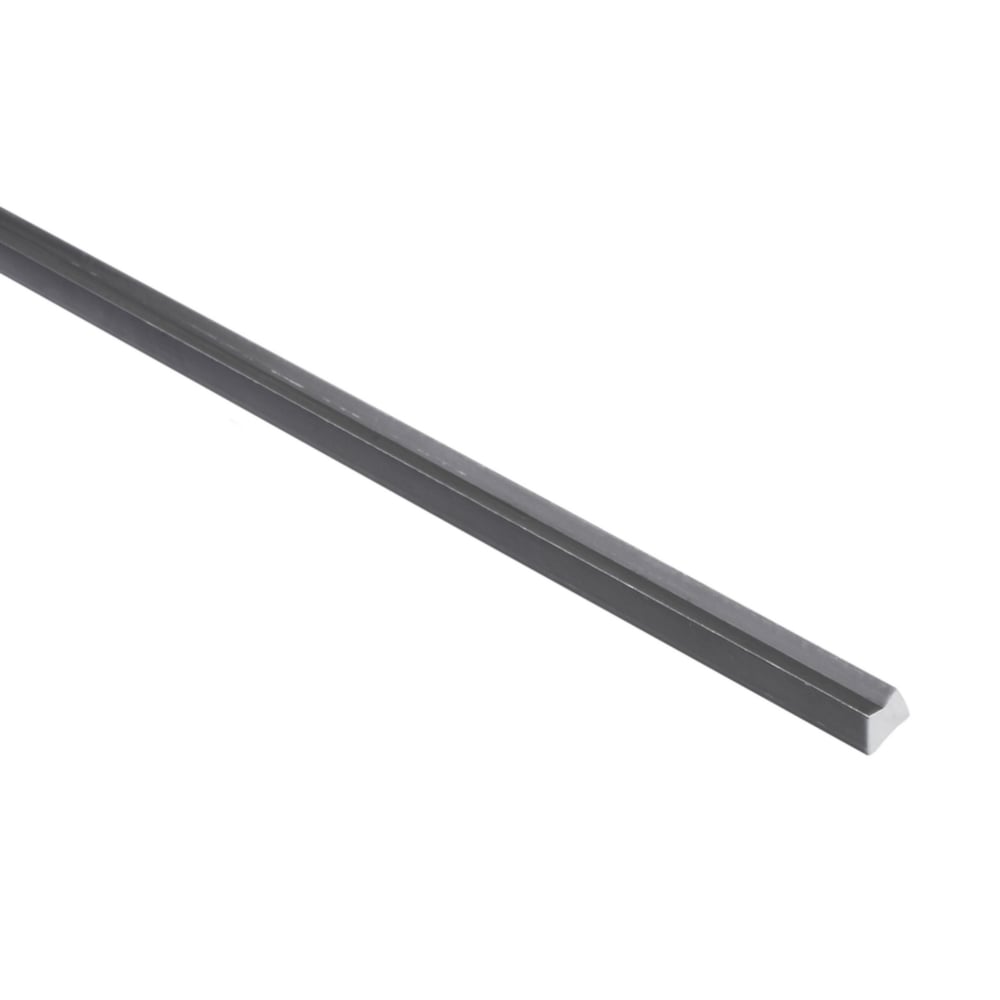

LSR12 CTL 48.000
Can't find what you're looking for? Go to the Product Selector
Support Rail Inch
Support Rail Inch, 0.750 in Diameter, Standard
Lead Time:
2 Days*
*Lead times may increase with quantity. Displayed lead times (in business days or weeks) do not include transit time.
Cut to Length:
Min: 1.0 in Max: 48.0 in Tolerance +/- 0.03125
- Low Shaft Rails allow the design of more compact linear motion systems
- Shaft supports simplify mounting of Thomson 60 Case shafts. Users of Thomson 60 Case shafting should consider the use of these shaft supports.
- Support only. Shaft not included
- These supports can be used horizontally or vertically.
| Dimension | Value |
|---|---|
| [A] | 0.5100 |
| [A2] | 0.3800 |
| [dia] | 0.7500 |
| [H] | 0.7500 |
| [H1] | 0.4200 |
