D12-10A5-04
Can't find what you're looking for? Go to the Product Selector
Actuator, Electrak 2, 12 Vdc, 500 lbf, 4 in, No Feedback, Cable length 7 in, Connector, Adapter at 0° (Standard), 1.00 in/s Travel Rate @ Full Load
Lead Time:
6 Weeks *
*Lead times may increase with higher quantities. Lead time displayed in business days.
**Costs associated with shipping, packaging, import taxes/duty, and surcharges not included.
- Robust, strong and reliable
- Stainless steel extension tube
- Self-locking acme screw drive system
- Overload clutch for mid and end of stroke protection
- Motor with thermal switch
- Maintenance free

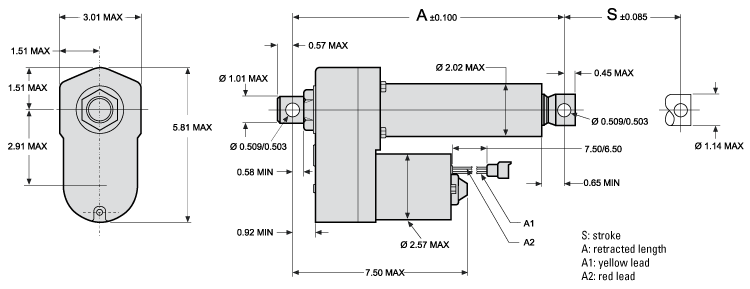

| Dimension | Value |
|---|---|
| [A] | 10.3 in |
| [S] | 4 in |

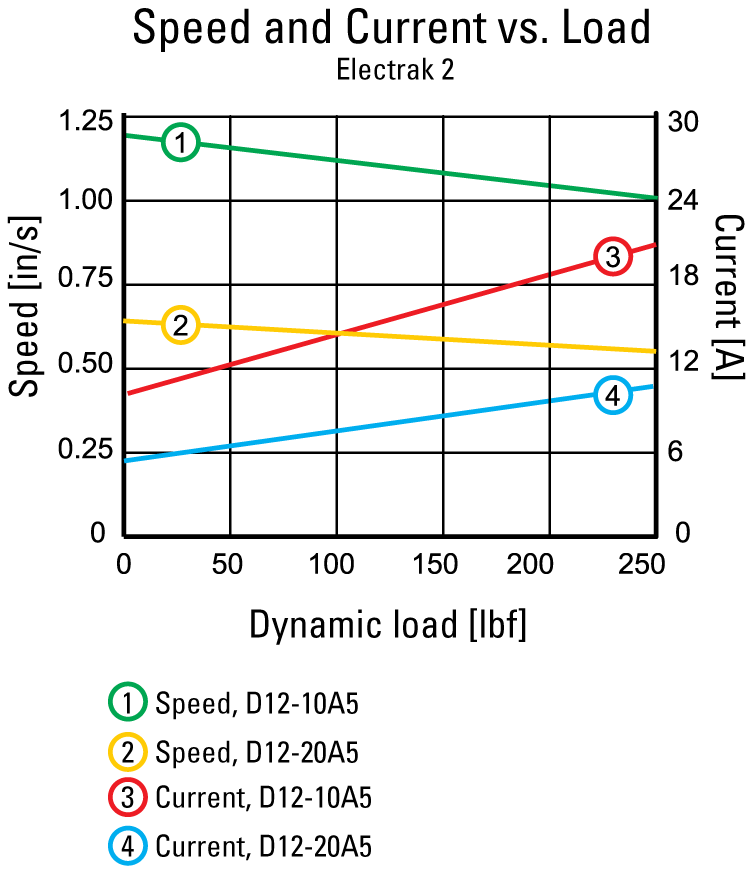

| Performance | Value |
|---|---|

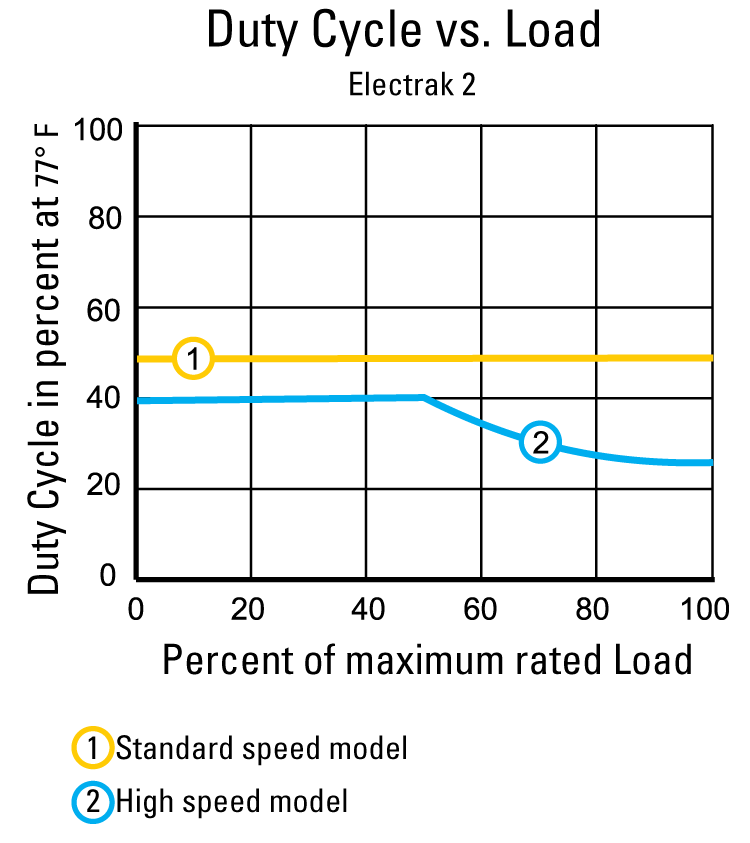

| Duty Cyle | 25 % |
| Load, Dynamic | 500 lbf |
| Load, Static, Max | 2500 lbf |
| Restraining Torque | 65 in-lbs |
| Travel Rate @ Full Load | 1 in/s |
| Travel Rate @ No Load | 1.2 in/s |
